Building A Custom Music Box (Part 1)

Well, I looked everywhere to find the music box. I suppose not literally everywhere, but I found myself searching obscure websites. From Chinese wholesalers to upscale artisanal music box makers. I even emailed a few people on Etsy, but was forced to select from a limited selection.

So I'm building it myself ヽ(´ ー`)ノ

There are still a few things to work out, most notably:

  • The gear mechanism is of poor quality.

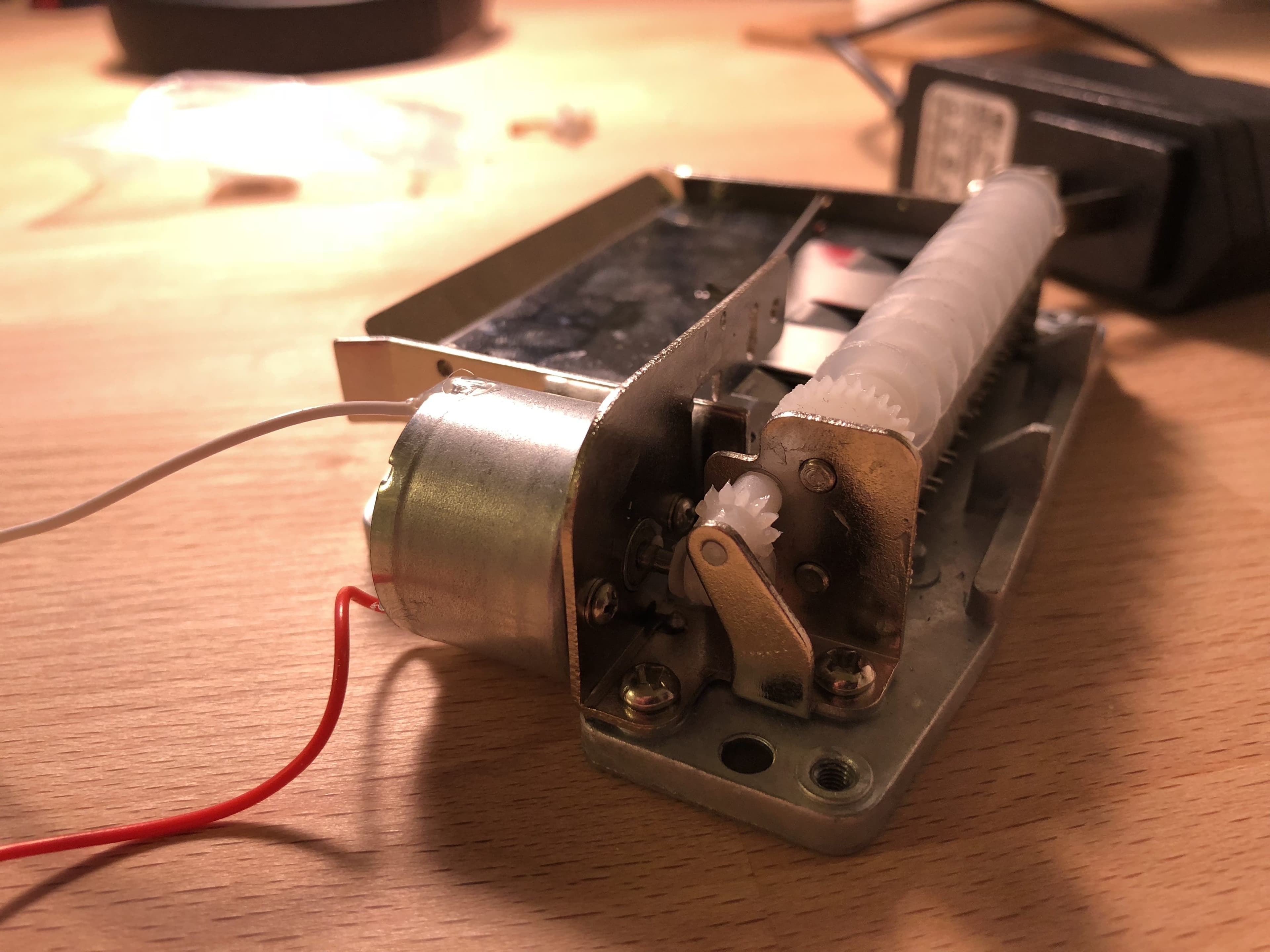

    • Made of cheap plastic that a gear has already been stripped clean. I've replaced it, but saying it's a delicate process would be an understatement.
  • There's a weird buzzing that occurs during playback.

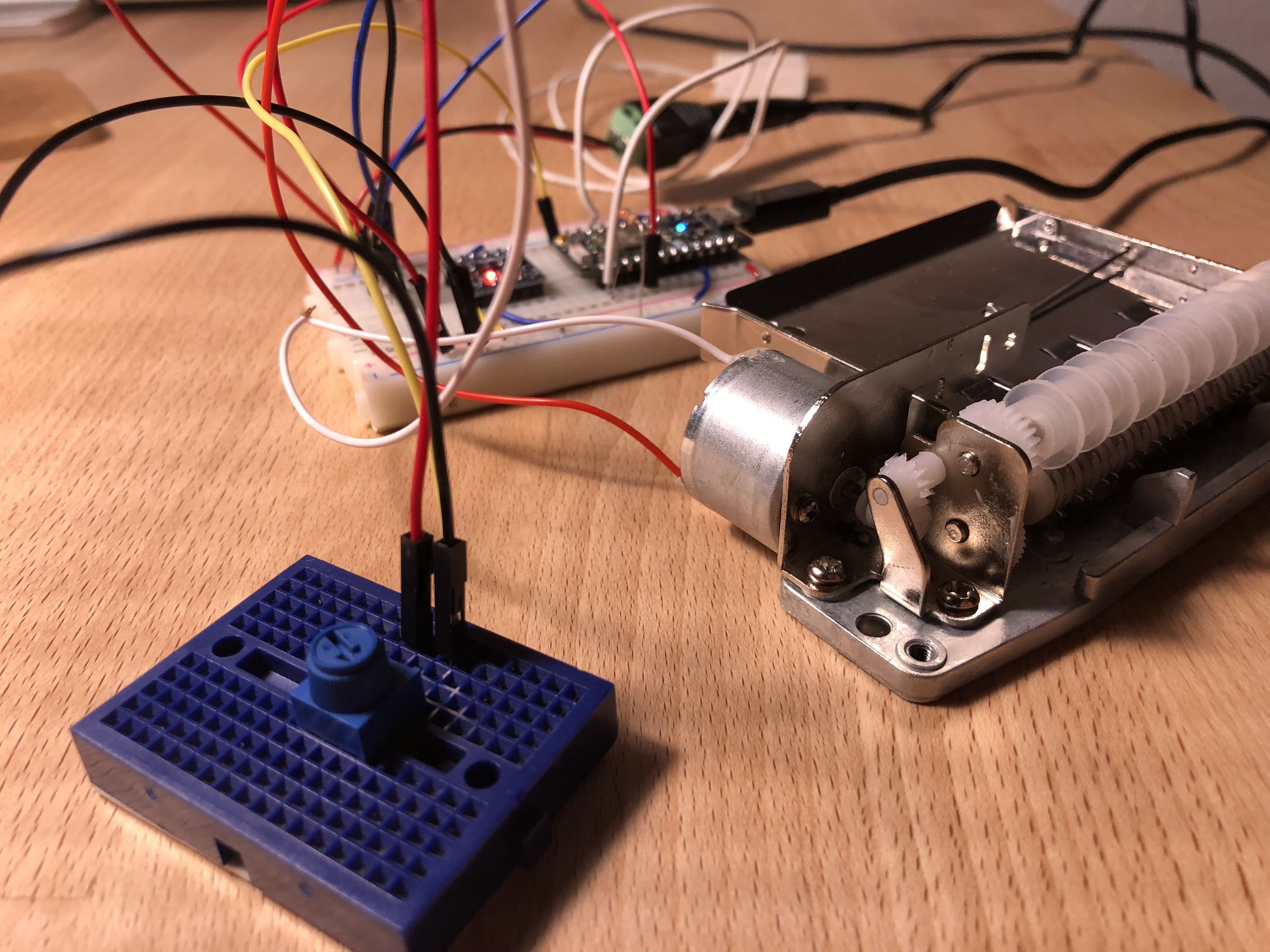

    • This should be an easy-ish fix. In the video, you can see I'm pressing down to help with the buzzing.
  • Everything must be mounted within an actual box.
  • Sheet music needs to be taped together to create a continuous loop.
  • Finally, solder everything to an actual breadboard.

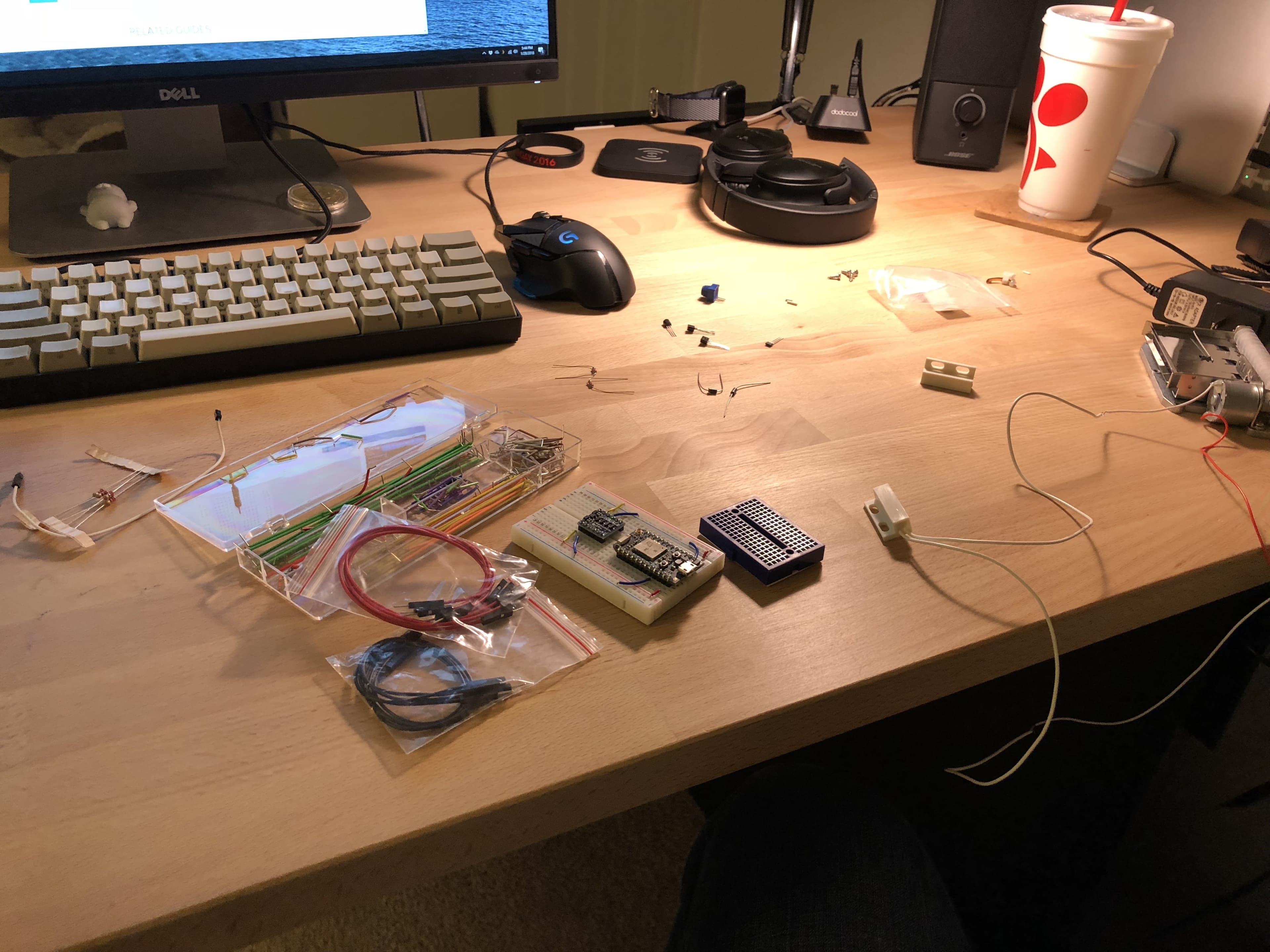

The Process

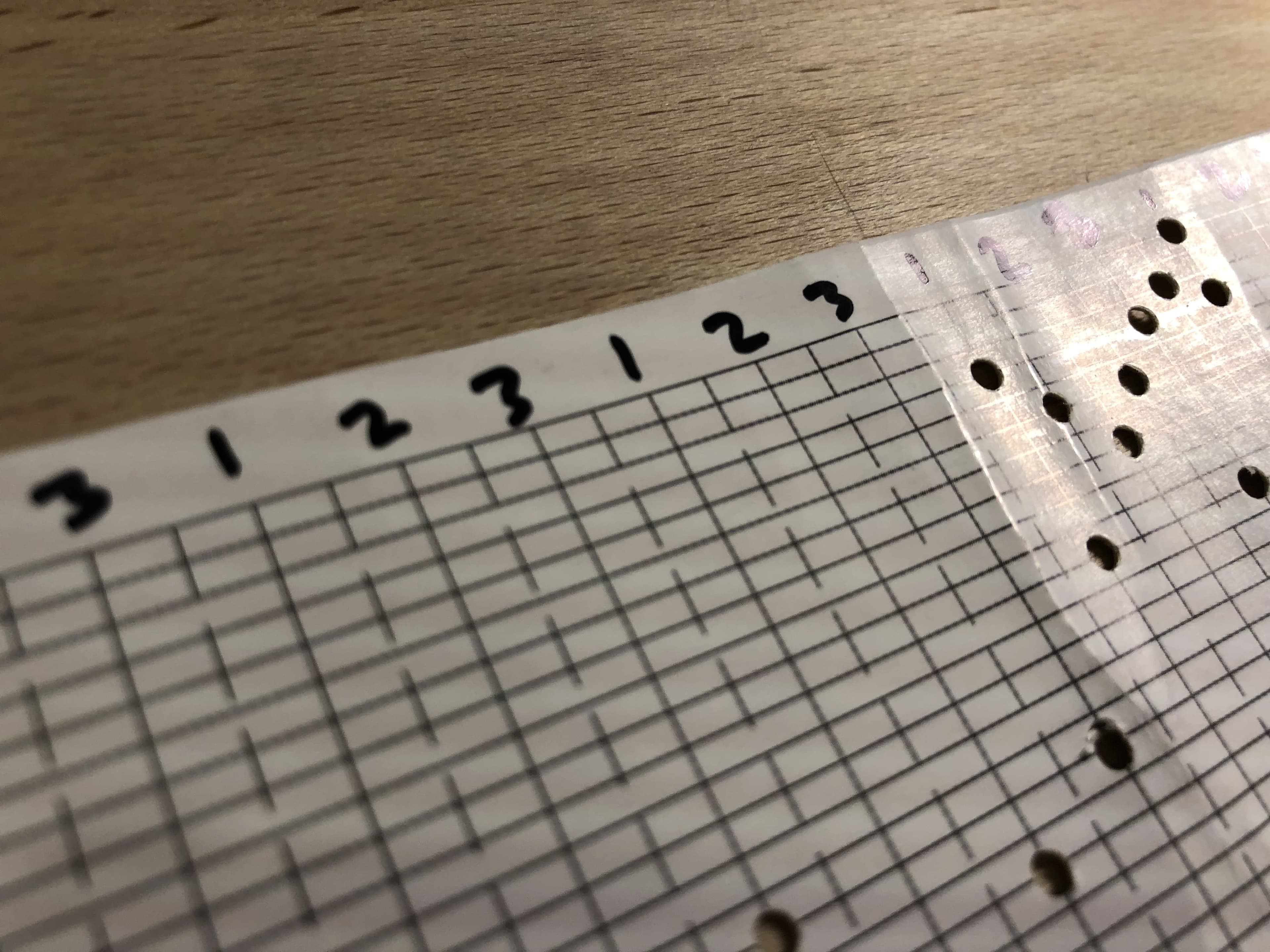

After finding the sheet music online and marking the notes, the process went like this:

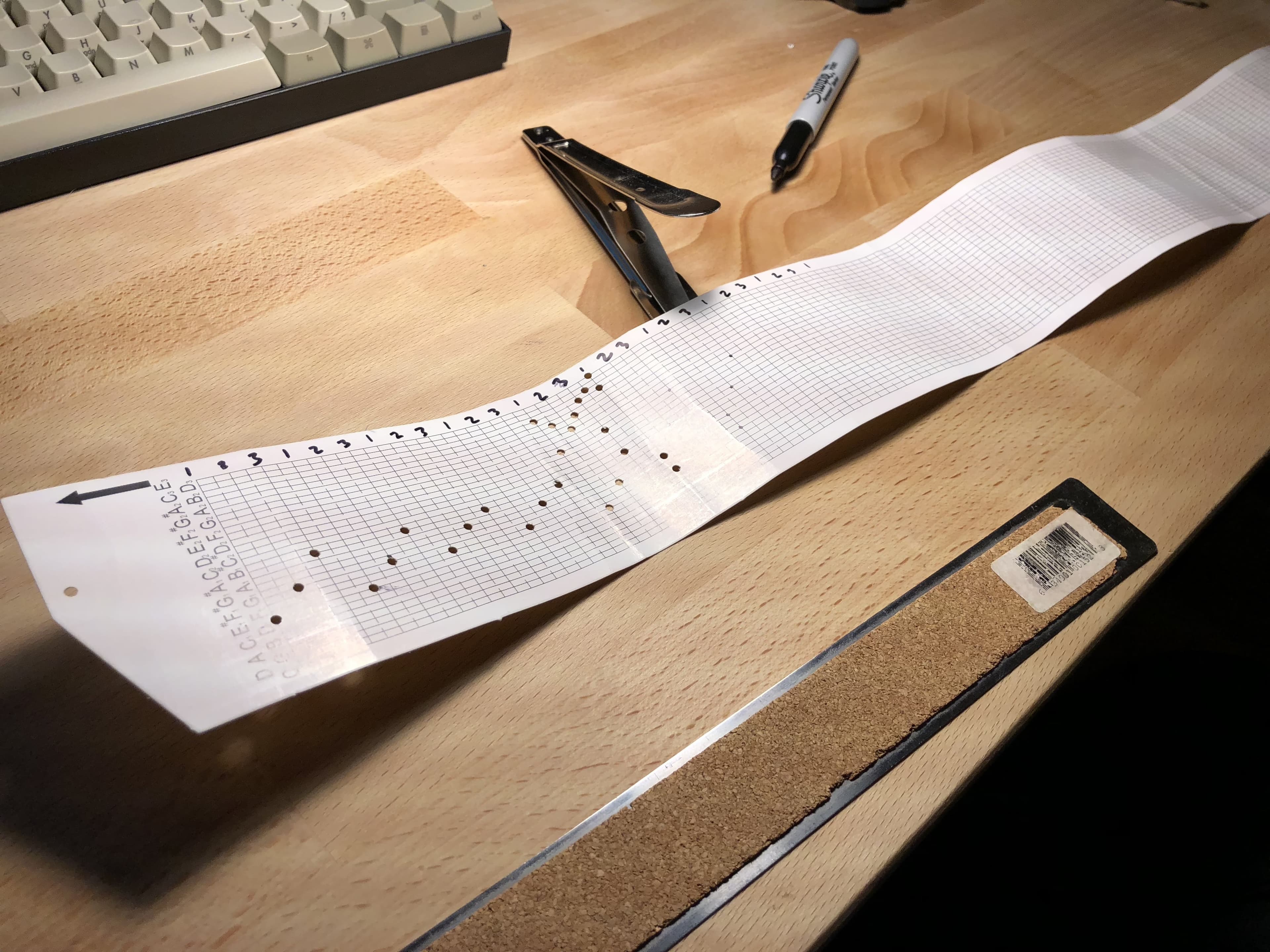

Step 1 - Punch the notes out.

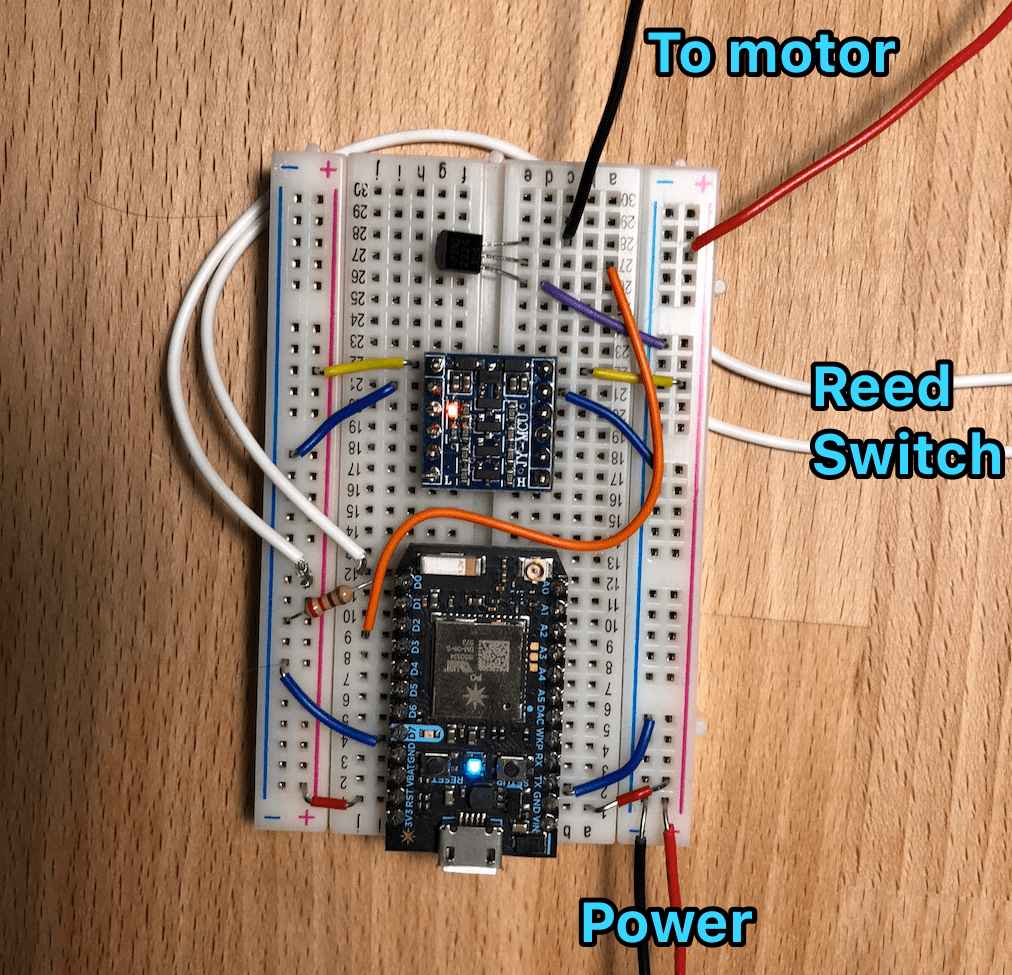

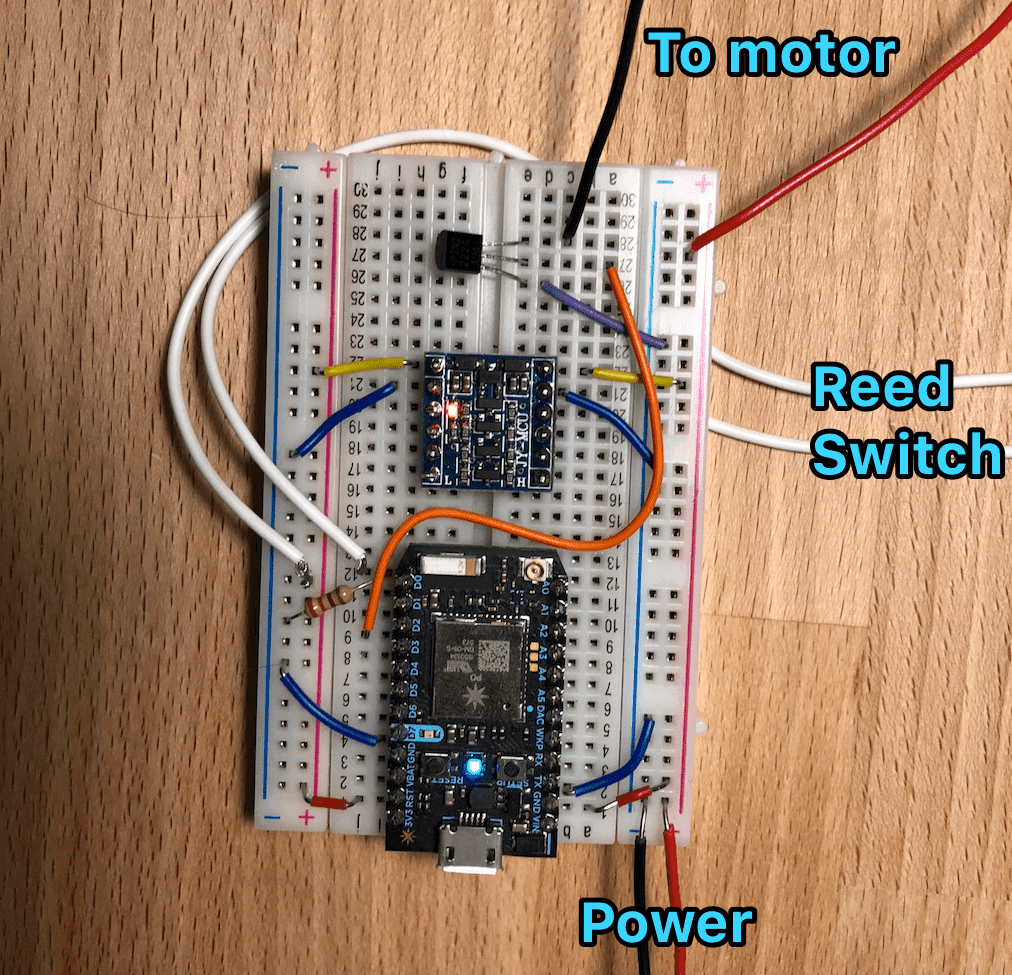

Step 2 - Wire everything up!


Step 3 - Add some code!

Normally, I would create a whole repo for the code used. But for now, this is all there is.

int REED_PIN = D0; int MOTOR_PIN = D3; int LED_PIN = D7; int MOTOR_SPEED = 255; void setup() { pinMode(LED_PIN, OUTPUT); pinMode(REED_PIN, INPUT_PULLUP); pinMode(MOTOR_PIN, OUTPUT); } void loop() { bool lidIsOpen = digitalRead(REED_PIN) == LOW; if (lidIsOpen) { digitalWrite(LED_PIN, HIGH); startMotor(); } else { digitalWrite(LED_PIN, LOW); stopMotor(); } } void startMotor() { analogWrite(MOTOR_PIN, MOTOR_SPEED); } void stopMotor() { analogWrite(MOTOR_PIN, 0); }

Here's the actual song for reference: Pan's Labyrinth Lullaby

Authored by Anthony Fox on 2018-02-09
